What Is Paver Block Machinery?
Paver block machinery is the set of machines used to turn cement, sand and aggregate into finished concrete paver blocks: a pan mixer that batches the concrete, and a vibrating table that compacts it inside a mould. A Sadashiv Enterprise line consists of a 10ft × 3ft vibrating table with a 2HP or 3HP three-phase special vibration motor and a 1500mm or 1800mm pan mixer with a 400–500kg batch capacity, together producing 2,500 to 3,000 paver blocks per day.
High-Performance Paver Block Machinery
At Sadashiv Enterprise, we engineer heavy-duty paver block machinery built for industrial-scale manufacturing. Our vibrating tables and pan mixers are precisely calibrated to produce high-density paver blocks, chequered tiles, curb stones, and covering blocks. By combining robust Indian steel construction with advanced vibration technology, our machines ensure that every block manufactured meets the highest standards of durability and structural integrity.
High Production Capacity
Capable of producing 2500 to 3000 pieces daily, maximizing your operational output.
ISO Certified Quality
Manufactured under strict ISO quality control for reliable, long-lasting performance.
Heavy-Duty Build
Constructed with premium 8-15mm pallets and heavy-duty 3-phase motors.

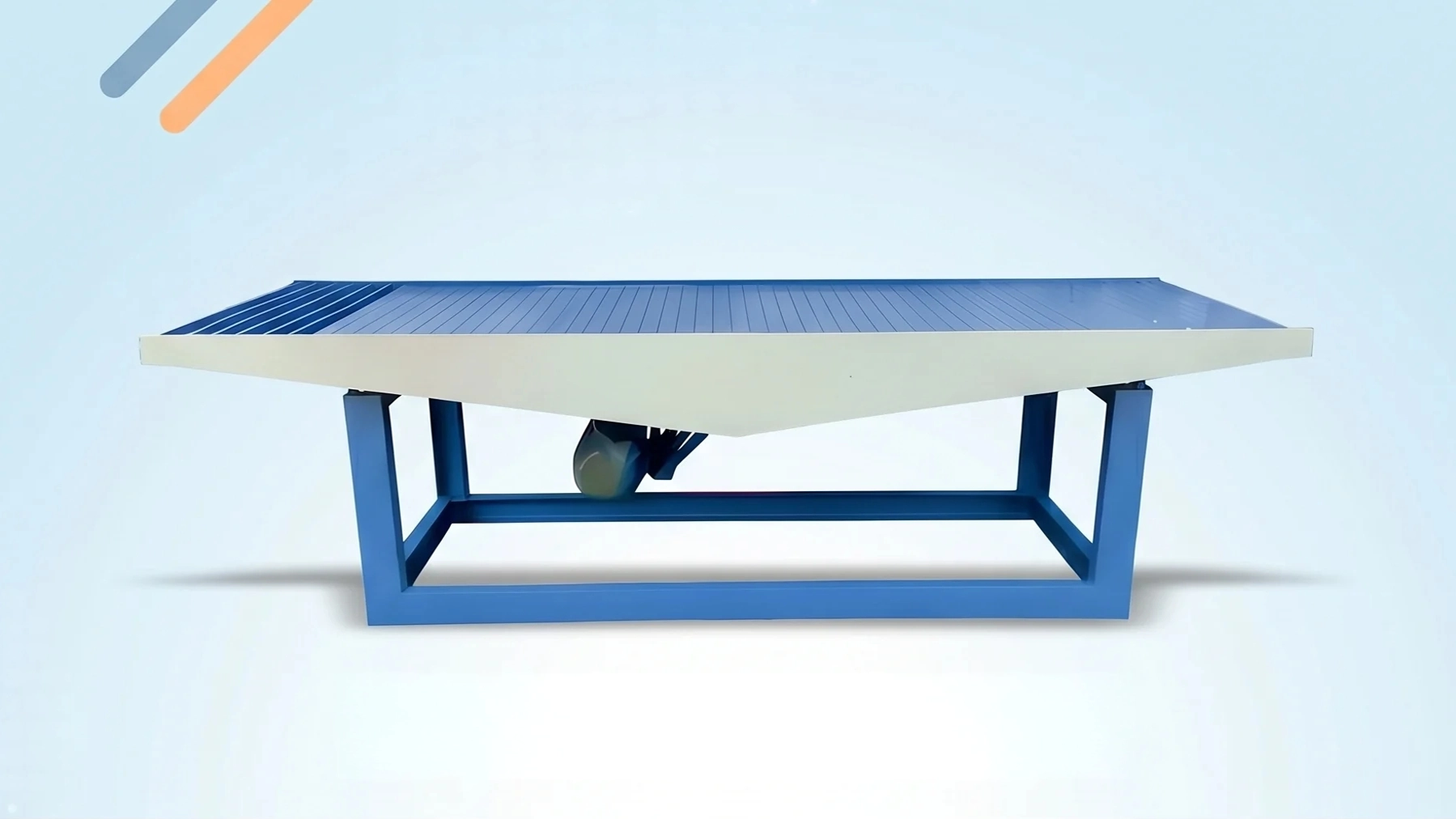

Technical Specification – Vibrating Table
| Parameter | Specification |
|---|---|
| Table Size | 10ft x 3ft |
| Electric Motor | 2hp/3hp 3phase (Special vibration motor) |
| Production Capacity | 2500 to 3000 pcs. |
| Material Used for Build | Top pallet 8/10mm, side pallets 8/10mm |
| Application | For making paver block, chequered tiles, curb stone, covering block through PVC rubber or plastic mould. |

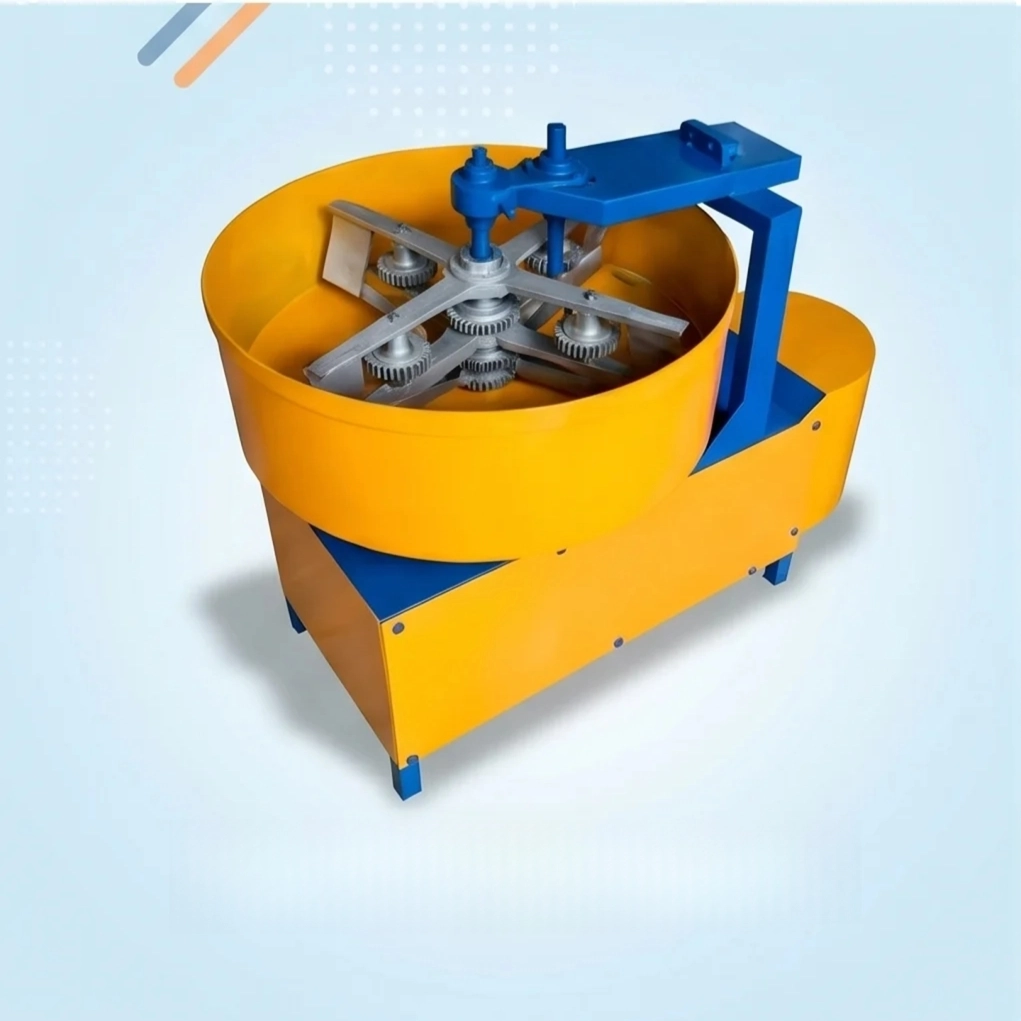

Technical Specification – Pan Mixer
| Parameter | Specification |
|---|---|
| Diameter | 1500 MM / 1800 MM |
| Pan Height | 500 MM |
| Mixing Capacity | 400kg to 500kg |
| Electric Motor | 5HP/7.5HP 3phase |
| Oil Capacity | 15ltr. Gear Oil |
| Material Mixing | By Heavy hand faced scraper |
| Material Charges | Manual |
| Material Discharges | Manual bottom door opening |
| Material Used for Build | Bottom pallet 12/15mm, side pallets 6/8mm |
| Application | Mixing raw material of concrete, sand, cement 2nd layer of paver block |
Comparing models? See the full technical specifications for our complete range of paver block machinery and moulds, side by side.
Frequently Asked Questions
What is the daily production capacity of your machinery? +
Our Vibrating Tables combined with our Pan Mixers can comfortably produce between 2,500 and 3,000 paver blocks per day depending on the mould type and workflow.
Can I use both PVC and Plastic moulds on this table? +
Yes, our machinery is fully compatible with both Plastic Moulds and PVC Rubber Moulds.
What motor power does the vibrating table need? +
The 10ft × 3ft vibrating table runs on a 2HP or 3HP three-phase special vibration motor. The pan mixer needs a separate 5HP or 7.5HP three-phase motor, so the site power supply must be planned for both machines together.
What is the vibrating table built from? +
The table is built with an 8/10mm top pallet and 8/10mm side pallets. The pan mixer uses a 12/15mm bottom pallet and 6/8mm side pallets, with heavy hand-faced scrapers for mixing.
Can the machinery produce chequered tiles and curb stones? +
Yes. The same vibrating table produces paver blocks, chequered tiles, curb stones and covering blocks. Only the mould changes; the table, motor and mixer stay the same.
Do you export paver block machinery outside India? +
Yes. Sadashiv Enterprise exports to more than 20 countries, including Sri Lanka, Madagascar, Kenya, Tanzania, Nigeria and the UAE. Export crating for sea freight and shipping documentation are handled as part of the order.
